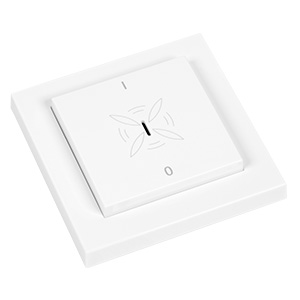

SH01 Humidity sensor Format 55
The SH01 radio sensor combines a humidity sensor with a push button.
The humidity sensor cyclically measures the relative air humidity and transmits a switching signal to an Easywave radio receiver when defined values are exceeded or reached for a second time. The receiver can then switch connected devices on, such as fans or electrical window openers.
The push button function is a standard Easywave application designed to switch electrical devices ON or OFF.
The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.
The humidity sensor cyclically measures the relative air humidity and transmits a switching signal to an Easywave radio receiver when defined values are exceeded or reached for a second time. The receiver can then switch connected devices on, such as fans or electrical window openers.
The push button function is a standard Easywave application designed to switch electrical devices ON or OFF.
The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.
SH01E5002-01-02K
Technical specifications
| Coding | Easywave |
| Frequency | 868,30 MHz |
| Channels | 2 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 1x 3V-battery, CR2032 alternatively: 12-24 V AC/DC wired |
| Measuring range | 1-99 % relative humidity (RH) |
| Accuracy | +/- 5 % (at 30-70 % RH) |
| Switching value | >74 % RH; fast increase of 4 % at >40 % RH |
| Function | measuring and transmitting air humidity levels, switching ON/OFF (2-button operation) |
| Operating temperature | -20 °C to +60 °C |
| Dimensions (W/L/H) | transmitter module: 55/55/9 mm mounting plate: 71/71/1.5 mm cover frame: 80/80/9,4 mm |
| Weight | 47,0 g (including battery and cover frame) |
| Color | white similar to RAL 9003 |
Scope of delivery
- Humidity sensor
- Battery
- Mounting plate
- Cover frame
- Adhesive pad
- Operating manual
Accessories (optional)
| RTS22-ACC-01-01P | Mounting plate, white |
| RTS22-ACC-05 | Cover frame single, Format 55, white |
RTS22-ACC-01-01P
RTS22-ACC-05
Models
| Product number | Description |
|---|---|
| SH01E5002-01-02K | Radio humidity sensor, Easywave, 2x ON/OFF, Format 55, white |
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.| Manufacturer | Products (Brands) | |
|---|---|---|
| BERKER | B1 B3 B7 Glas S1 | |
| GIRA | E2 Event Esprit Standard55 | |
| JUNG | A500 AS500 A Creation Aplus | |
| MERTEN | M-Arc M-Plan M-Smart M-Star | |
| ELSO | JOY RIVA with combination frame 55 SCALA with combination frame 55 FASHION with combination frame 55 | |
| Legrand | SEANO™ SEANO™+ SEANO™Natura | |
| Busch-Jaeger | Balance SI |
