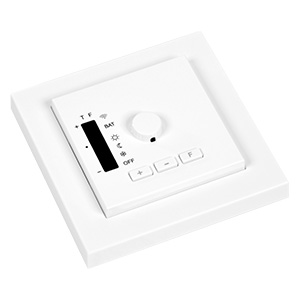

ST01 Radio temperature sensor for heating Format 55
The ST01 temperature sensor is a battery-powered radio thermostat for regulating room temperatures ranging from approx. 14 °C - 25 °C.
The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.
The current room temperature is measured cyclically and compared with the adjustable set point. If there are deviations, the appropriate switching command is transmitted to the receiver.
In addition to the daytime operating mode, a nighttime temperature reduction function is available with an adjustable set-point temperature.
The sensor works either with ON/OFF commands or with an extended control system via pulse-width modulation (PWM).
The current room temperature is measured cyclically and compared with the adjustable set point. If there are deviations, the appropriate switching command is transmitted to the receiver.
In addition to the daytime operating mode, a nighttime temperature reduction function is available with an adjustable set-point temperature.
The sensor works either with ON/OFF commands or with an extended control system via pulse-width modulation (PWM).
ST01E5001-01-02K
Technical specifications
| Coding | factory coding with Easywave telegram |
| Frequency | 868,30 MHz |
| Channels | 1 |
| Range | typically 150 m in good free-field conditions |
| Power supply | 2x 3V batteries CR2032 |
| Control modes | ON/OFF PWM (can only be used with RCP15 and RCJ15) |
| Function | measuring and transmitting temperature data daytime operating mode nighttime temperature reduction frost protection |
| Control range | approx. +14 °C to approx. +25 °C |
| Operating temperature | -20 °C to +40 °C |
| Dimensions | cover: 55 x 55 x 9 mm mounting plate: 71 x 71 x 1.5 mm |
| Weight | 36,0 g (including batteries) |
| Color | white similar to RAL 9003 |
Scope of delivery
- Temperature sensor
- 2 batteries
- Mounting plate
- Adhesive pad
- Operating manual
Accessories (optional)
| RTS22-ACC-01-01P | Mounting plate, white |
RTS22-ACC-01-01P
Models
| Product numbers | Description |
|---|---|
| ST01E5001-01-02K | Temperature sensor, Easywave, 1x ON/OFF/PWM, heating, Format 55, white |
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.| Manufacturer | Products (Brands) |
|---|---|
| BERKER | B1 B3 B7 Glas S1 |
| GIRA | E2 Event Esprit Standard55 |
| JUNG | A500 AS500 A Creation Aplus |
| MERTEN | M-Arc M-Plan M-Smart M-Star |
| ELSO | JOY RIVA with combination frame 55 SCALA with combination frame 55 FASHION with combination frame 55 |
