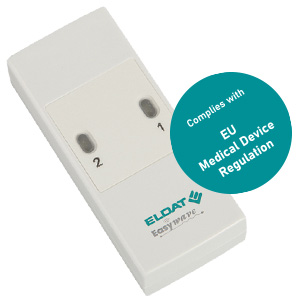

The RCL07 mini receiver is a radio micro-receiver equipped with two potential-free switch contacts and designed for a variety of different applications.

The mini receiver is suitable for converting existing radio systems or for upgrading wired switchgear.

RCL07E5002A30
Technical specifications
Coding Easywave
Up to 32 transmitters can be programmed.
Frequency 868,30 MHz
Channels 2
Power supply 12-24V AC
12-32V DC
Max. current consumption 10mA / 45mA (both relays are switched)
Operating modes DEADMAN (maximum 36 seconds)
PULSE (1 second)
ON/OFF (2-button operation)
Outputs 2 potential-free relay contacts
(1x changeover contact, 1x normally open contact) combined
Max. contact ratings AC
  switching voltage:
  switching current:
  switching power:		 (Ω)
120V AC
1A
62W
Max. contact rating DC
  switching voltage:
  switching current:
  switching power:
50V DC
1A
30W
Protection degree IP54 (with installed ø 5,30mm cable)
Operating temperature -20 °C to +60 °C
Dimensions (W/L/H) 35/80/20 mm
Color white similar to RAL 9003
Scope of delivery
  • Mini receiver
  • Operating manual
Models
Product number Description
RCL07E5002A30 Mini receiver, Easywave, 12-24VAC / 12-32VDC, 1x changeover + 1x normally open, potential-free, IP54, white
Wiring diagram
