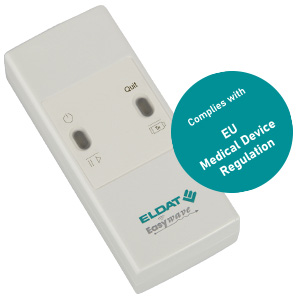

The call receiver RCL07 signals incoming calls by switching a relay output according to the programmed operating mode.

If the acknowledgment function is activated, calls can be acknowledged via a button on the device or conveniently with a separate radio transmitter.

Weak batteries from learned radio transmitters are signaled via the second relay contact.

The call function can be muted for 15 minutes or unlimited, for example to avoid false alarms during daily care or when not in use.

The RCL07 is programmed exclusively via the internal operating buttons, so that accidental reprogramming is precluded.

RCL07E5002C30
Technical specifications
Coding Easywave
Up to 32 CALL, 8 ACKNOWLEDGE, 8 CARE
or 8 MUTE transmitters can be programmed.
Frequency 868,30 MHz
Channels 2
Power supply 12-24 V AC
12-32 V DC
Power consumption 10mA / 45mA load (both relays are switched)
Operating modes PULSE (1 second)
ON/OFF (2-button operation)
Functions CALL function
ACKNOWLEDGE function
CARE function
MUTE function
battery undervoltage detection
Outputs 2 potential-free relay contacts
1x changeover contact: call
1x normally open contact: battery undervoltage
Max. contact ratings AC
  switching voltage:
  switching current:
  switching power:		 (Ω)
120V AC
1A
62W
Max. contact rating DC
  switching voltage:
  switching current:
  switching power:
50V DC
1A
30W
Protection degree IP54 (with installed ø 5,30mm cable)
Operating temperature -20 °C to +60 °C
Dimensions (W/L/H) 35/80/20 mm
Color white similar to RAL 9003
Scope of delivery
  • Call receiver
  • Operating manual
Models
Product number Description
RCL07E5002C30 Call receiver, Easywave, 12-24VAC / 12-32VDC, potential-free, IP54, battery low, internal programming, white
Wiring diagram
